Sanitary napkin production line

SANITARY NAPKIN PRODUCTION LINE

Dear Sir /Madam,

This is Jack.Ma I am from QUANZHOU JUNWEI MACHINERY & OENY TRADING CO.,LTD. CHINA;We are pleased to offer you the products of our company . According to your description and according to the characteristics of the products, we describe the main structure, characteristics and parts of the machine as follows:

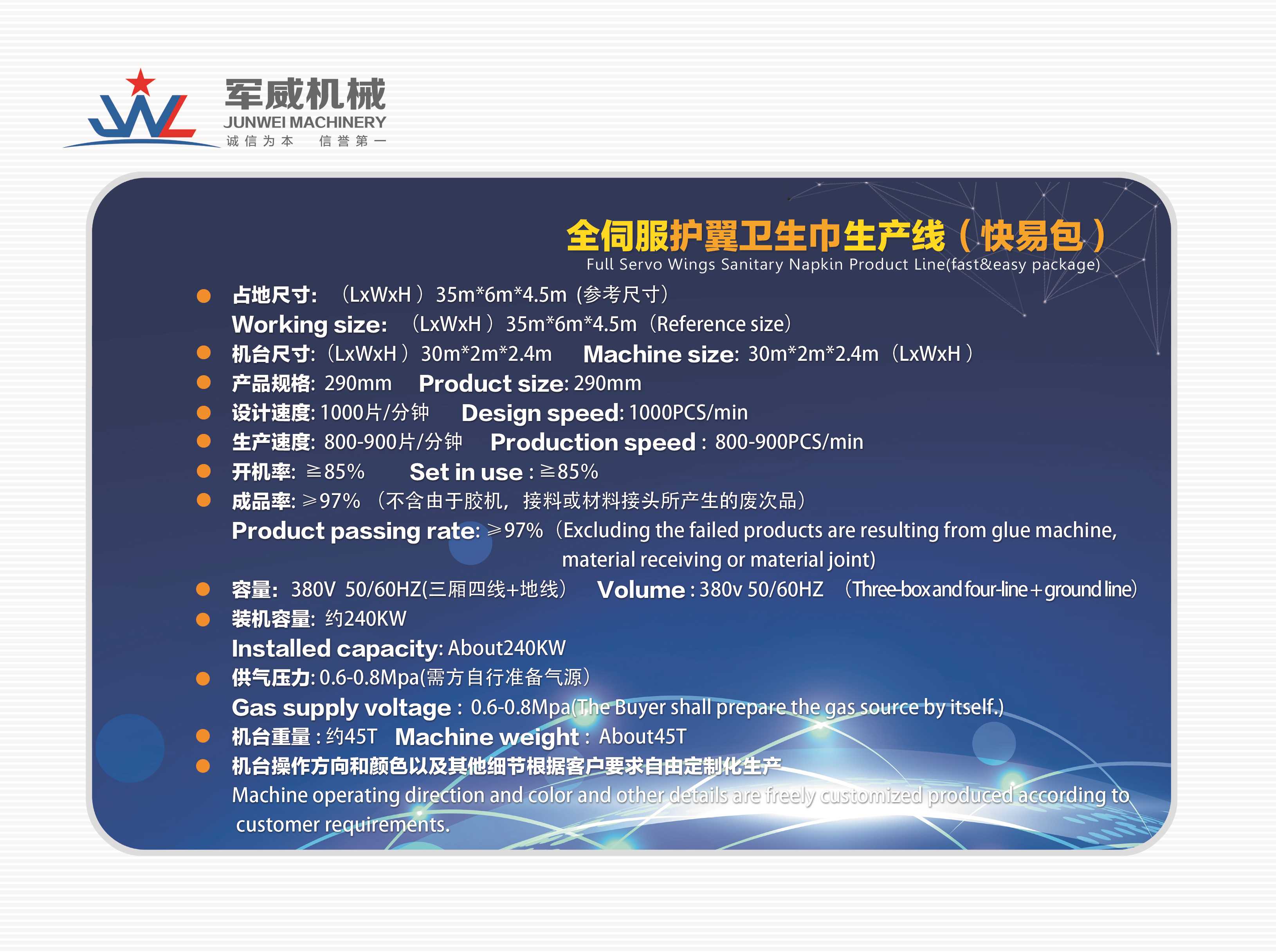

Main Technical Data

Working Speed(Production speed)	500pcs~800pcs/minute
Working Speed(Linear web speed)	Up to 220meters/minute
Power supply	380V 50HZ, Tri-phase
Installation power capacity	185~220KW
Air consumption	1800~4800l/minute
Qualified rate	≥98%
Product width(min~max, for sanitary napkin)	80~175mm
Product length(min~max, for sanitary napkin)	200~380mm
Dimensions(L×W×H, Meters)	L: 22~25 W: 4~6 H: 3~4.5
Model Number	JWSN600
Delivery Time	150 Days
Price	300000~500000＄(FOB Packing Machine a not included)

Technical features:
Compact design, easy
operation&maintenance
Modular design, for future upgrading
Low consumption, high efficiency
Servo or frequency inverter
transmission
Touch screen for man-machine
conversation
Auto record and calculation of
process data
Main raw material auto splicing at
zero speed
Inverter or servo unwinding with
tension control
Web guiding controller
Sensor quality control systems
Material broken and lost inspection,
auto machine stop and defective
products auto rejection
Easy size changing and manufacture
CE approval

Basic process configuration:
High speed pulverizer(untreated
pulp is allowed)
Fluff forming unit
SAP dosing unit
Raw material feeding units
Inner cutter Unit
Edge crimping unit
Product 180°turnover
Product 90°transverse turning unit
Final cutter unit
Pouch film Application unit
Air application unit
Safety protection unit

Optional process configurations:
Aloe/perfume application unit
Gravimetric SAP dosing unit
Camera quality detection unit

Raw material specifications

Item Number	Raw material layer(straight type fluff core)
1	Hydrophilic N.W.(for top sheet)
2	Fluff core pad
3	SAP(super absorbent polymer)
4	Lower tissue
5	Back sheet PE
6	Back release paper
7	Pouch film
8	Easy tape
9	ADL N.W.(Option)
Options(Straight type Ultrathin,)
10	Air laid paper
11	SAP Paper
Options(with wing)
12	Wing release paper
Options(Fast & Easy Packing)
13	Pouch film
14	Easy tape
Options(for three pieces laminations)
15	Hydrophobic N.W.
Options(for three pieces laminations)
16	Leak Elastic(For standing cuff)
